Zetron MIC100 Fixed Multi Gas Detector - Online Gas Monitoring System with OLED Display and RS485 / 4-20mA Output for Toxic, Combustible and VOC Gases

Name: Zetron MIC100 Fixed Multi Gas Detector Online Gas Monitoring System with OLED Display and RS485 420mA Output for Toxic Combustible and VOC Gases
Brand: Zetron
Price: 100 USD

Quality Zetron MIC100 Fixed Multi Gas Detector - Online Gas Monitoring System with OLED Display and RS485 / 4-20mA Output for Toxic, Combustible and VOC Gases for sale

Brand Name : Zetron

Model Number : MS104K

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD 100-545/set- 879/set

Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A, L/C

Supply Ability : 1000 SET / week

Delivery Time : 1-10 work days

Packaging Details : 29*26*13.5cm, 2.5kg

Type : Fixed Detector

Gas unit : PPM, mg/m3, Vol%, LEL%, PPM, ppb, mg/l

customized support : OEM, ODM, OBM, Software Reengineering

Power Supply : 24V DC (optional AC power)

Working Temperature : -40°C to +70°C

warranty : 1 year

Contact Now

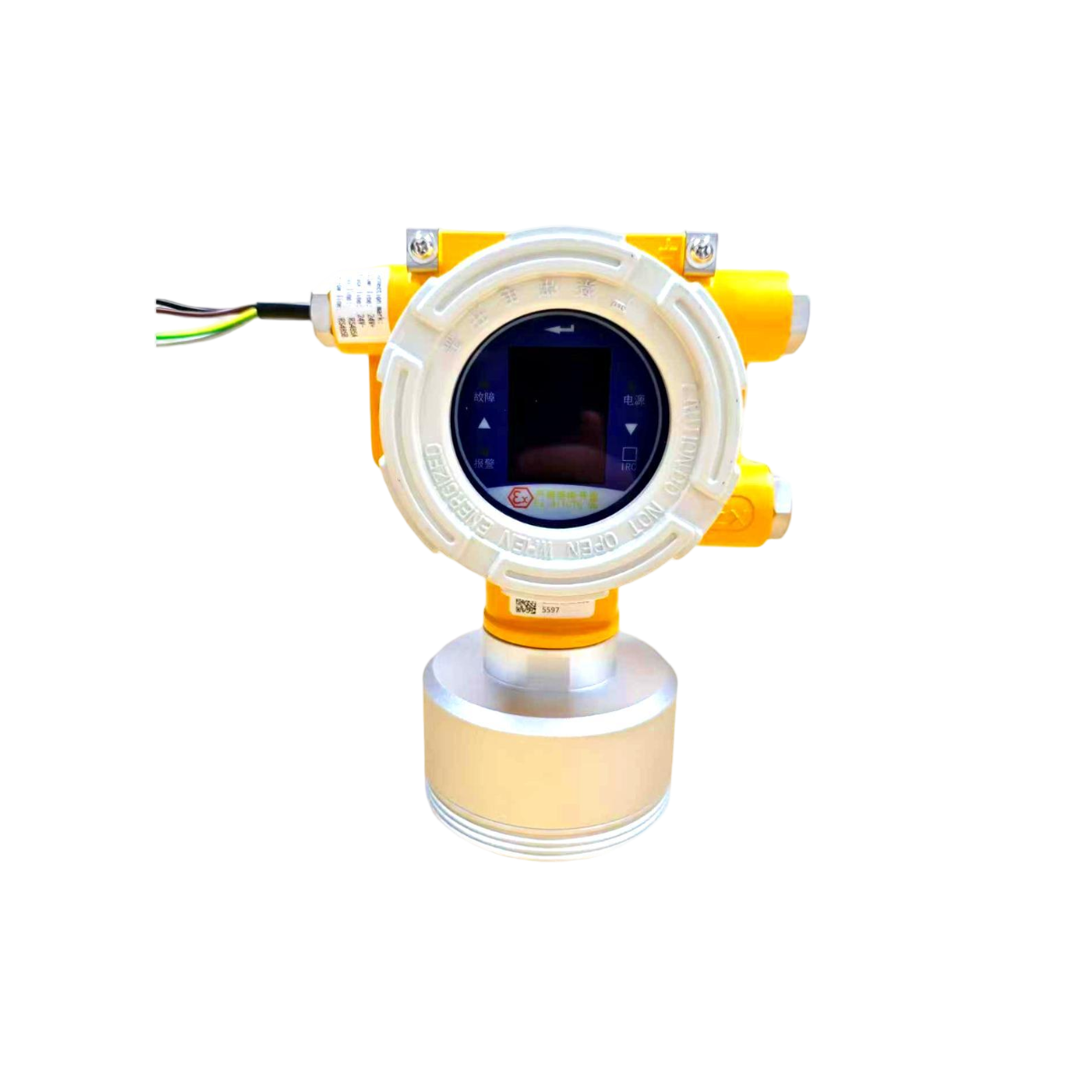

MIC100 Fixed Type 4-in-1 Gas Detector

The MIC100 is a highly integrated online multi-gas detection solution designed to provide superior safety monitoring in harsh industrial environments. It is capable of simultaneously monitoring up to four different gases in real time with high precision, covering a wide range of applications from combustible and explosive gases to various toxic and hazardous gases as well as volatile organic compounds (VOCs).

The MIC100 combines multiple advanced sensing technologies, including catalytic combustion, electrochemical, non-dispersive infrared (NDIR), and photoionization (PID) detection principles. It is equipped with intelligent modular sensors, a high-definition OLED display, and supports multi-point calibration and temperature compensation functions, ensuring stable and accurate measurements even under complex working conditions. With its durable construction and convenient remote operation capability, the MIC100 is an ideal choice for ensuring personnel safety, preventing property loss, and meeting industrial compliance requirements.

Zetron MIC100 Fixed Multi Gas Detector - Online Gas Monitoring System with OLED Display and RS485 / 4-20mA Output for Toxic, Combustible and VOC Gases

Key Features

Multi-functional Integrated Monitoring: Supports simultaneous detection of up to four gases. The configuration can be flexibly customized based on site requirements, integrating different types of gas sensors in one device to greatly improve monitoring efficiency and reduce overall costs.
Intelligent Modular Sensors: Designed with modular, intelligent sensor units that simplify installation and maintenance. The plug-and-play design minimizes downtime and ensures continuous, reliable monitoring performance.
Exceptional Accuracy and Stability: Equipped with multi-point calibration and built-in temperature compensation algorithms to eliminate the impact of environmental temperature variations. It delivers high-precision measurement results within a wide temperature range of -40°C to +70°C.
Rugged and Explosion-Proof Design: Constructed with a high-strength aluminum alloy housing, the device achieves IP66 protection rating and triple waterproof design. Certified with Exd IIC T6 Gb explosion-proof rating, it performs reliably even in humid, dusty, or explosive atmospheres.

Technical Specifications

Item	Description
Model	MIC100
Detection Principle	Catalytic combustion, Electrochemical, NDIR, PID (optional)
Gas Types	Combustible gas, O₂, CO, H₂S, NH₃, Cl₂, SO₂, VOCs, etc.
Detection Channels	Up to 4 gases simultaneously
Measuring Range	Customizable according to gas type
Display	1.3-inch OLED high-definition display
Accuracy	≤ ±2% F.S.
Response Time (T90)	≤ 20 seconds
Power Supply	24V DC (optional AC power)
Working Temperature	-40°C to +70°C
Protection Rating	IP66, triple waterproof design
Explosion-Proof Grade	Exd IIC T6 Gb

Application Industries:

The MIC100 Online Multi-Gas Detector is widely used in industries such as petrochemical, natural gas, metallurgy, power generation, pharmaceuticals, wastewater treatment, warehousing, laboratories, and environmental monitoring. It provides real-time online detection of toxic, combustible, and VOC gases, helping to prevent leakage accidents and ensure personnel and equipment safety. With its explosion-proof, dustproof, and waterproof design, the MIC100 operates reliably under harsh and complex conditions, making it an essential component of industrial safety monitoring systems.

Zetron MIC100 Fixed Multi Gas Detector - Online Gas Monitoring System with OLED Display and RS485 / 4-20mA Output for Toxic, Combustible and VOC Gases

Zetron MIC100 Fixed Multi Gas Detector - Online Gas Monitoring System with OLED Display and RS485 / 4-20mA Output for Toxic, Combustible and VOC Gases Images
